집진효율 0.2㎛~2㎛ 분진을 99.95% 포집
모델명 일반/NL 제전/ ALU 발수/ PTFE 제전+ 발수/ ALU + PTFE
CF-800NL CF-800ALU CF-800PTFE CF-800ALU+PTFE
CF-1200NL CF-1200ALU CF-1200PTFE CF-1200ALU+PTFE

General Information < 일반적성질 >
Base Media / 재질 Polyester Polyester Polyester Polyester
Treatment / 표면처리 n/a Aluminum coating Antistatic PTFE Coating
Oleo/Hydrophobic
ALU+PTFE Coating Antistatic
Oleo/ Hydrophobic
Filter Size / 필터크기 2 Decitex 2 Decitex 2 Decitex 2 Decitex
Color / 색상 White Gray white Gray
Weights / 무게 260 g/㎡ 265 g/㎡ 265 g/㎡ 270 g/㎡
Material Thickness / 두께 0.6 ㎜ 0.6 ㎜ 0.6 ㎜ 0.6 ㎜
Air Permeability At 200Pa. / 통기도 570 ㎥/㎡h 520 ㎥/㎡h 520 ㎥/㎡h 510 ㎥/㎡h
Temperature Resistance / 온도조건 120℃(Dry) 90℃(Moisture) 120℃(Dry) 90℃(Moisture) 120℃(Dry) 90℃(Moisture) 120℃(Dry) 90℃(Moisture)

Chemical Resistance < 화학적성질 >
Oil & Water Resistance / 기름, 물에대한저항성 Good Good Excellent Excellent
HydrolysisResistance / 가수분해저항성 Fair Fair Good Excellent
Acid Resistance / 산성저항성 Good Good Good Good
AlkalineResistance / 알카리저항성 Fair Fair Good Good
ResistanceinOhm / 전기저항성 n/a 1.0 X 10³ n/a 1.0 X 10³
Dust Release / 분진배출 Excellent Excellent Excellent Excellent

Filter Test < 필터 테스트 >
Application CategoryAfter BIA U.S.G.C U.S.G.C U.S.G.C U.S.G.C
BIA 테스트 Nr. 9508410/ 6210 Nr.9508410 / 6210 Nr.9508410 / 6210 Nr.9508410/6210
Operating Efficiency / 집진효율 99.95% on 0.2㎛~2㎛ 99.95% on0.2㎛~2㎛ 99.95% on 0.2㎛~2㎛ 99.95% on 0.2㎛~2㎛
Application Fields / 적용분야 metal, wood,
chemical, cement,
food, paper,
pharmaceutical,
welding smoke,
shot blasting,
foundry dust,
metallic fume
metal, wood,
chemical, cement,
food, paper,
pharmaceutical,
welding smoke,
shot blasting,
foundry dust,
powder
metallurgical powder
oilyweld fume
pharmaceutical,
weldingsmoke,
shot blasting,
foundrydust,
powder
activated carbon,
pharmaceutical,
powder paint,
welding smoke,
shot blasting,
foundry dust, uranium

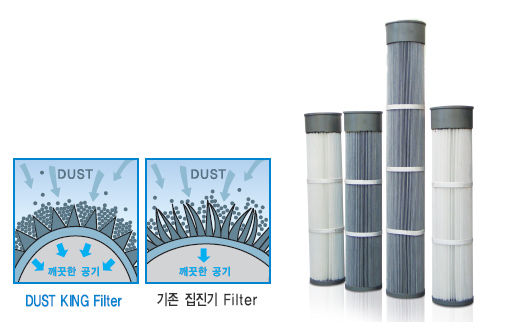

Filter의 장점
설치및교체가간단
일반Bag 보다여과면적이크다
주름이많다
Cage 는플라스틱재질
Air 소모량이적음
Air 및Washable 가능
상하부는폴리우레탄재질
Bag 삽입후Gasket 이없이Venturi 교정
유지·보수비용절감Filter 의장점
